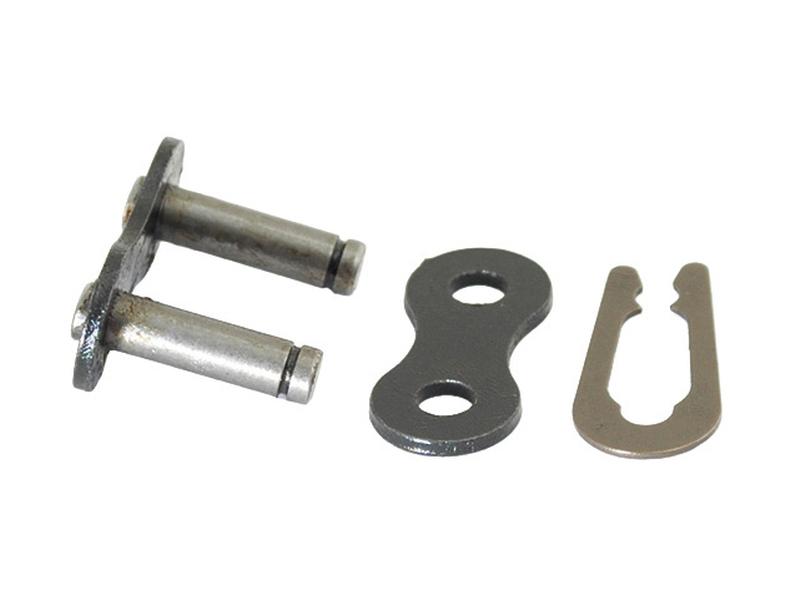

Connecting Link, Simplex, 80-1 HVS.112961https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/112961_pic1.jpgN/A1.00'' x 5/8'' SD ChainS.112961
B (ins)
5/8
B (mm)
15.8
B1 (mm)
15.75
B1 ins
5/8
B2 (mm)
24.28
B4 (mm)
37.40
B7 (mm)
5.40
Barcode 128
S.128805
Barcode EAN13
5045161288053
Brand
iwis
C (mm)
7.9
Chain Reference
80-1 HV
Connecting pin Ø (mm)
7.94
d1 (mm)
15.88
d2 (mm)
7.94
d3 (mm)
4.00
d4 (mm)
4.00
H2 (mm)
24.13
P (mm)
25.40
P ins
1
Pitch (ins)
1
Pitch (mm)
25.40
Related products
Cranked Link, Simplex, 80-1 HVS.128806https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/128806_pic1.jpgiwis1'' x 5/8'' ELITEDrive Chain - Simplex, 80-1 HV (5M)S.127919https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/127919_pic1.jpgiwis1'' x 5/8'' (ELITE)EXO 21 Chain Grease - Aerosol 500mlS.81460https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/81460_pic1.jpgEXO Protection against wear, stretching and corrosion. Fully synthetic, colorless grease with excellent lubricity at heavy loads (VKA value: 2.800N approx. 280kg). Thermally stable range: -40° C to 200°C. High penetration. Optimal adhesion. Splash water protection. Suited for O-, X- and Z-rings. Clean the chain and apply product. Allow 10 minutes before placing in service again.S.128806, S.127919, S.81460
Roller width (ins)
5/8
Roller width (mm)
15.87
Roller Ø (mm)
15.88
Specification
ELITE
Tariff Code
7315190000
Tensile Strength (FB) KN
80
Type
Simplex
Suitable For Make/Model
Suitable For Make/Model
This product is not associated with any particular make or model
OEM Part Numbers
Oem Part Numbers
Chain Reference
80-1HV
