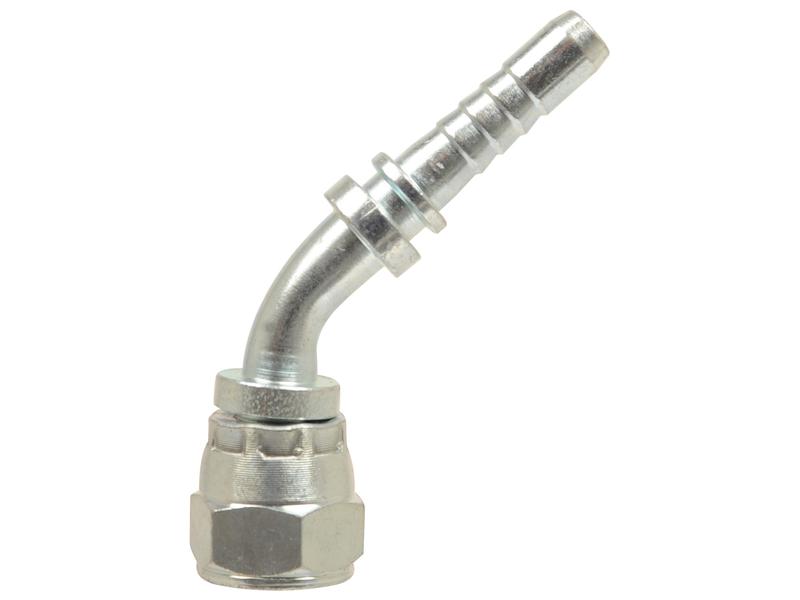

Dicsa JIC 37° Hose Insert 5/8\'\' x 1 1/16\'\' Female Thread 135° Swept Swivel Image 1

  • Dicsa JIC 37° Hose Insert 5/8\'\' x 1 1/16\'\' Female Thread 135° Swept Swivel 1
  • Dicsa JIC 37° Hose Insert 5/8\'\' x 1 1/16\'\' Female Thread 135° Swept Swivel 2
  • Dicsa JIC 37° Hose Insert 5/8\'\' x 1 1/16\'\' Female Thread 135° Swept Swivel 3
  • Dicsa JIC 37° Hose Insert 5/8\'\' x 1 1/16\'\' Female Thread 135° Swept Swivel
Dicsa JIC 37° Hose Insert 5/8\'\' x 1 1/16\'\' Female Thread 135° Swept Swivel - Image 3

Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread 135° Swept Swivel

Make: 83

S.26566

Weight: 0.21kg
Stock Check
View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Dicsa 2SN/2SC 2 Wire Ferrule 5/8''
Make: 83
S.112568 - Dicsa 2SN/2SC 2 Wire Ferrule 5/8''
Dicsa 4SP 4 Wire Ferrule 5/8''
Make: 83
S.116654 - Dicsa 4SP 4 Wire Ferrule 5/8''
Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Male Thread Straight
Make: 83
S.26546 - Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Male Thread Straight
Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread Straight Swivel
Make: 83
S.26552 - Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread Straight Swivel
Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread 90° Swept Swivel
Make: 83
S.26557 - Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread 90° Swept Swivel
Product Specifications

Specifications

Dicsa
Barcode 128
S.26566
Barcode EAN13
5023495265667
Brand
Dicsa
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Cone angle
37°
C Ø (mm)
12
DN Ø mm
15.9
Fitting
2 Piece Fitting
Hex1 (mm)
32
Hose inner Ø (ins)
5/8
Hose inner Ø (mm)
15.9
L (mm)
97
L1 (mm)
34
L2 (mm)
26
Nominal I.D.
DN16
Position
135° Swept Swivel
Reference
241391710
Related products
Dicsa 2SN/2SC 2 Wire Ferrule 5/8''S.112568https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/112568_pic1.jpgDicsa Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Male Thread StraightS.26546https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/26546_pic1.jpgThread size (R1) | 1 1/16 || Related products | 112568,26552,26557,26566,116654 || C Ø (mm) | 12 || Hose inner Ø (mm) | 15.9 || DN Ø mm | 15.9 || Fitting | 2 Piece Fitting || Reference | 241401710 || Hex1 (mm) | 32 || Cone angle | 37° || L1 (mm) | 38.3 || Hose inner Ø (ins) | 5/8 || DN Ø ins | 5/8 || Barcode EAN13 | 5023495265469 || L (mm) | 72.3 || Tariff Code | 7307199000 || Nominal I.D. | DN16 || Thread type | JIC || Thread Male or Female | Male Thread || Barcode 128 | S.26546 || Position | Straight || Returnable Product | This item can be returned Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread Straight SwivelS.26552https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/26552_pic1.jpgThread size (R1) | 1 1/16 || Related products | 112568,26546,26557,26566,116654 || C Ø (mm) | 12 || Hose inner Ø (mm) | 15.9 || DN Ø mm | 15.9 || Fitting | 2 Piece Fitting || Reference | 241421710 || Hex1 (mm) | 32 || L1 (mm) | 34 || Cone angle | 37° || Hose inner Ø (ins) | 5/8 || DN Ø ins | 5/8 || Barcode EAN13 | 5023495265520 || L (mm) | 55.8 || Tariff Code | 7307199000 || Nominal I.D. | DN16 || Thread Male or Female | Female Thread || Thread type | JIC || Barcode 128 | S.26552 || Position | Straight Swivel || Returnable Product | This item can be returned Dicsa JIC 37° Hose Insert 5/8'' x 1 1/16'' Female Thread 90° Swept SwivelS.26557https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/26557_pic1.jpgDicsa Dicsa 4SP 4 Wire Ferrule 5/8''S.116654https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/116654_pic1.jpgDicsa S.112568, S.26546, S.26552, S.26557, S.116654
Tariff Code
7307199000
Thread Male or Female
Female Thread
Thread size (R1)
1 1/16
Thread type
JIC
Comparison Table
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

This product is not associated with any particular OEM part number
Catalogue Pages

Catalogue Pages

Catalogue
Page No.
S.74000 Accessories 2014
349
