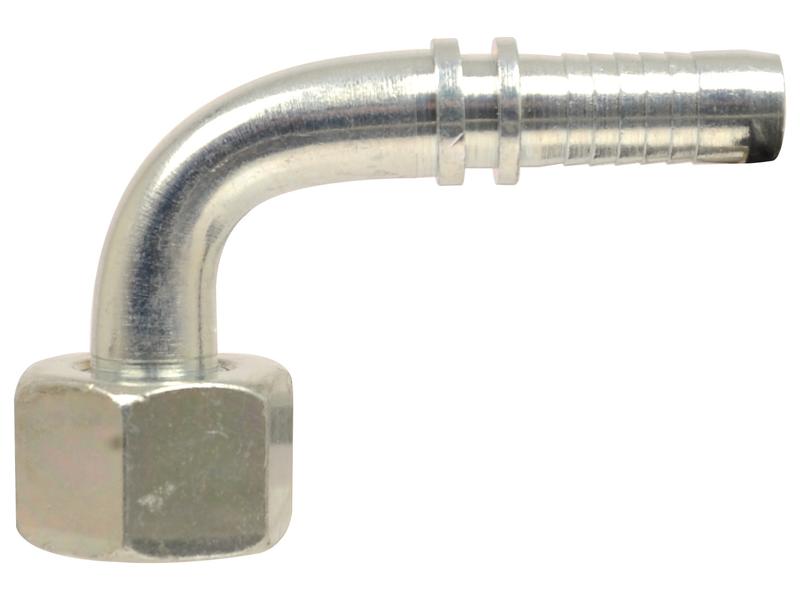

Dicsa Metric 24° Hose Insert 1/4\'\' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring Image 1

  • Dicsa Metric 24° Hose Insert 1/4\'\' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring 1
  • Dicsa Metric 24° Hose Insert 1/4\'\' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring 2
  • Dicsa Metric 24° Hose Insert 1/4\'\' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring 3
  • Dicsa Metric 24° Hose Insert 1/4\'\' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring
Dicsa Metric 24° Hose Insert 1/4\'\' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring - Image 3

Dicsa Metric 24° Hose Insert 1/4'' x M16 x 1.5 (10L) Female Thread 90° Swept Swivel With O-Ring

Make: 83

S.13562

Weight: 0.05kg
Stock Check
View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Dicsa 2SN/2SC 2 Wire Ferrule 1/4''
Make: 83
S.112564 - Dicsa 2SN/2SC 2 Wire Ferrule 1/4''
Dicsa Metric 24° Hose Insert 1/4'' x M16 x 1.5 (10L) 135° Swept Swivel With O-Ring
Make: 83
S.13563 - Dicsa Metric 24° Hose Insert 1/4'' x M16 x 1.5 (10L) 135° Swept Swivel With O-Ring
O Ring 1.5 x 8mm 70 Shore
Make: 65
S.8957 - O Ring 1.5 x 8mm 70 Shore
Dicsa 4SP 4 Wire Ferrule 1/4''
Make: 83
S.116651 - Dicsa 4SP 4 Wire Ferrule 1/4''
Product Specifications

Specifications

Dicsa
Barcode 128
S.13562
Barcode EAN13
5023495135625
Brand
Dicsa
Cone angle
24°
C Ø (mm)
4
DN Ø ins
1/4
DN Ø mm
6.3
Fitting
2 Piece Fitting
Hex1 (mm)
19
Hose inner Ø (ins)
1/4
Hose inner Ø (mm)
6.3
L (mm)
56
L1 (mm)
28
L2 (mm)
32.5
Nominal I.D.
DN06
Position
90° Swept Swivel With O-Ring
Reference
24305161004
Related products
Dicsa 2SN/2SC 2 Wire Ferrule 1/4''S.112564https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/112564_pic1.jpgDicsa Dicsa Metric 24° Hose Insert 1/4'' x M16 x 1.5 (10L) 135° Swept Swivel With O-RingS.13563https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/13563_pic1.jpgDicsa Dicsa 4SP 4 Wire Ferrule 1/4''S.116651https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/116651_pic1.jpgDicsa O Ring 1.5 x 8mm 70 ShoreS.8957https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/8957_pic1.jpgSparex S.112564, S.13563, S.116651, S.8957
Tariff Code
7307199000
Thread Male or Female
Female Thread
Thread size (R1)
M16 x 1.5
Thread type
Metric
Tube Series
10L
Tube Ø (mm)
10
Comparison Table
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

This product is not associated with any particular OEM part number
Catalogue Pages

Catalogue Pages

Catalogue
Page No.
S.74000 Accessories 2014
349
