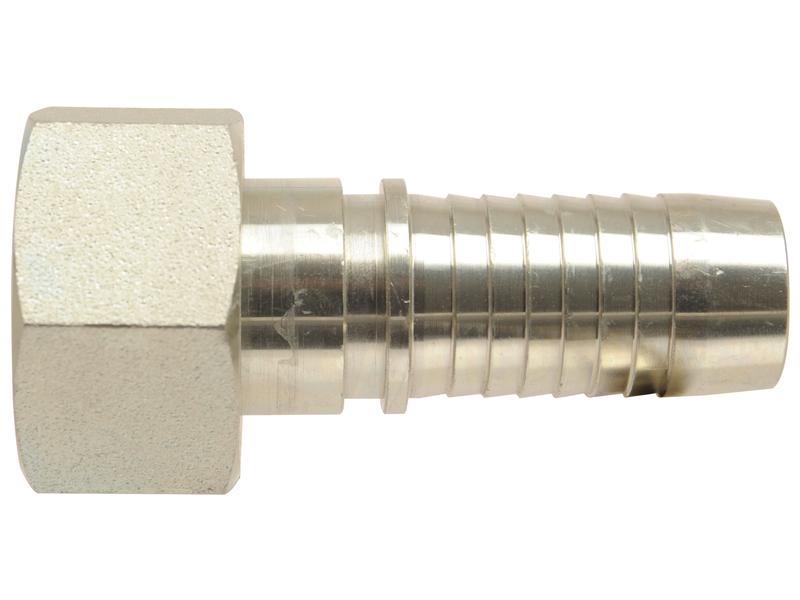

Dicsa Metric 24° Hose Insert 3/4\'\' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring Image 1

  • Dicsa Metric 24° Hose Insert 3/4\'\' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring 1
  • Dicsa Metric 24° Hose Insert 3/4\'\' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring 2
  • Dicsa Metric 24° Hose Insert 3/4\'\' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring 3
  • Dicsa Metric 24° Hose Insert 3/4\'\' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring
Dicsa Metric 24° Hose Insert 3/4\'\' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring - Image 3

Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Female Thread Straight Swivel With O-Ring

Make: 83

S.26577

Weight: 0.18kg
Stock Check
View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Dicsa 2SN/2SC 2 Wire Ferrule 3/4''
Make: 83
S.112569 - Dicsa 2SN/2SC 2 Wire Ferrule 3/4''
O Ring 3/32'' x 3/4'' (BS116) 70 Shore
Make: 65
S.1922 - O Ring 3/32'' x 3/4'' (BS116) 70 Shore
Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Female Thread 90° Swept Swivel With O-Ring
Make: 83
S.26581 - Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Female Thread 90° Swept Swivel With O-Ring
Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Male Thread Straight
Make: 83
S.53307 - Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Male Thread Straight
Dicsa 4SP 4 Wire Ferrule 3/4''
Make: 83
S.116655 - Dicsa 4SP 4 Wire Ferrule 3/4''
Product Specifications

Specifications

Dicsa
Barcode 128
S.26577
Barcode EAN13
5023495265773
Brand
Dicsa
Cone angle
24°
C Ø (mm)
15
DN Ø ins
3/4
DN Ø mm
19.05
Fitting
2 Piece Fitting
Hex1 (mm)
46
Hose inner Ø (ins)
3/4
Hose inner Ø (mm)
19.05
L (mm)
71.5
L1 (mm)
39
Nominal I.D.
DN20
Position
Straight Swivel With O-Ring
Reference
24804302212
Related products
Dicsa 2SN/2SC 2 Wire Ferrule 3/4''S.112569https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/112569_pic1.jpgDicsa Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Female Thread 90° Swept Swivel With O-RingS.26581https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/26581_pic1.jpgDicsa Dicsa Metric 24° Hose Insert 3/4'' x M30 x 2 (22L) Male Thread StraightS.53307https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/53307_pic1.jpgDicsa Dicsa 4SP 4 Wire Ferrule 3/4''S.116655https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/116655_pic1.jpgDicsa O Ring 3/32'' x 3/4'' (BS116) 70 ShoreS.1922https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/1922_pic1.jpgSparexO'Ring - 3/32'' x 3/4'' (Material: Nitrile Rubber 70° shore hardness. For general use at temperatures: -40°C to +135°C.)S.112569, S.26581, S.53307, S.116655, S.1922
Tariff Code
7307199000
Thread Male or Female
Female Thread
Thread size (R1)
M30 x 2
Thread type
Metric
Tube Series
22L
Tube Ø (mm)
22
Comparison Table
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

This product is not associated with any particular OEM part number
Catalogue Pages

Catalogue Pages

Catalogue
Page No.
S.74000 Accessories 2014
349
