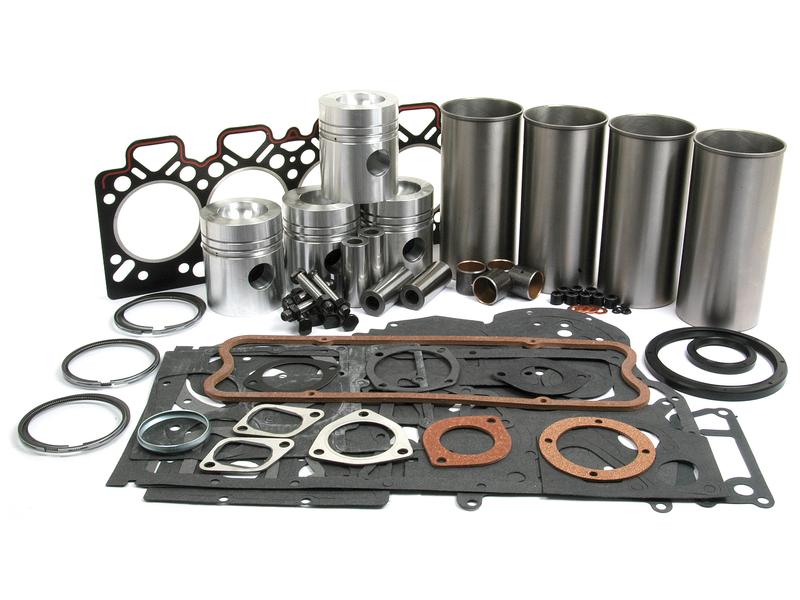

Engine Overhaul Kit without Valve Train (Finished) Image 1

  • Engine Overhaul Kit without Valve Train (Finished) 1
Engine Overhaul Kit without Valve Train (Finished) - Image 3

Engine Overhaul Kit without Valve Train (Finished)

Make: 65

S.41941

Weight: 14.00kg
Stock Check
Engine Overhaul Kit without Valve Train
Engine Manufacturer: -
Engine Model: -
Cylinder View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Oil Seal 2.375 x 3.125 x 0.375
Make: 65
S.40351 - Oil Seal 2.375 x 3.125 x 0.375
Imperial Rotary Shaft Seal, 5.17'' x 6.25'' x 0.51''
Make: 65
S.40356 - Imperial Rotary Shaft Seal, 5.17'' x 6.25'' x 0.51''
Small End Bush - ID: 34.6mm
Make: 65
S.40361 - Small End Bush - ID: 34.6mm
Conrod Bolt
Make: 65
S.40363 - Conrod Bolt
Bottom Gasket Set - 4 Cyl. (AD4.203, A4.212, A4.236, AT4.236, A4.248)
Make: 65
S.40610 - Bottom Gasket Set - 4 Cyl. (AD4.203, A4.212, A4.236, AT4.236, A4.248)
Piston Liner (Finished) Supplied with
Make: 65
S.41375 - Piston Liner (Finished) Supplied with
Piston Ring
Make: 65
S.41401 - Piston Ring
Top Gasket Set - 4 Cyl.
Make: 65
S.43568 - Top Gasket Set - 4 Cyl.
Fuel Filter - Element
Make: 92
S.1296 - Fuel Filter - Element
Push Rod
Make: 65
S.30019 - Push Rod
Fan Blade
Make: 65
S.40007 - Fan Blade
Fan Blade
Make: 65
S.40008 - Fan Blade
Top Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 40mm
Make: 65
S.40021 - Top Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 40mm
Bottom Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 38mm
Make: 65
S.40030 - Bottom Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 38mm
Bottom Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 38mm
Make: 65
S.40031 - Bottom Hose, Inner Ø of Hose Smaller End: 38mm, Inner Ø of Hose Bigger End: 38mm
Water Pump Assembly (Without Pulley)
Make: 65
S.40037 - Water Pump Assembly (Without Pulley)
Thermostat
Make: 65
S.40085 - Thermostat
Thermostat
Make: 65
S.40087 - Thermostat
Cylinder Head Assembly
Make: 65
S.40306 - Cylinder Head Assembly
Conrod Bearing Standard Set
Make: 65
S.40323 - Conrod Bearing Standard Set
Conrod Bearing +0.010'' (0.25mm) Set
Make: 65
S.40324 - Conrod Bearing +0.010'' (0.25mm) Set
Conrod Bearing +0.020'' (0.50mm) Set
Make: 65
S.40325 - Conrod Bearing +0.020'' (0.50mm) Set
Conrod Bearing +0.030'' (0.75mm) Set
Make: 65
S.40326 - Conrod Bearing +0.030'' (0.75mm) Set
Main Bearing Standard (Set)
Make: 65
S.40339 - Main Bearing Standard (Set)
Main Bearing +0.010'' (0.25mm) (Set)
Make: 65
S.40340 - Main Bearing +0.010'' (0.25mm) (Set)
Main Bearing +0.020'' (0.50mm) (Set)
Make: 65
S.40341 - Main Bearing +0.020'' (0.50mm) (Set)
Main Bearing +0.030'' (0.75mm) (Set)
Make: 65
S.40342 - Main Bearing +0.030'' (0.75mm) (Set)
Thrust Washers (Set)
Make: 65
S.40345 - Thrust Washers (Set)
Thrust Washers (Set)
Make: 65
S.40346 - Thrust Washers (Set)
Flywheel Lock Tab
Make: 65
S.40347 - Flywheel Lock Tab
Conrod
Make: 65
S.40359 - Conrod
Ring Gear
Make: 65
S.40364 - Ring Gear
Inlet Valve
Make: 65
S.40478 - Inlet Valve
Exhaust Valve Standard
Make: 65
S.40488 - Exhaust Valve Standard
Inlet Valve Guide
Make: 65
S.40496 - Inlet Valve Guide
Valve Spring - Inner
Make: 65
S.40501 - Valve Spring - Inner
Valve Spring - Outer
Make: 65
S.40506 - Valve Spring - Outer
Balancer Unit
Make: 65
S.40508 - Balancer Unit
Balancer Unit
Make: 65
S.40512 - Balancer Unit
Camshaft Gear
Make: 65
S.40522 - Camshaft Gear
Idler Gear
Make: 65
S.40526 - Idler Gear
Oil Filter - Element
Make: 92
S.40535 - Oil Filter - Element
Oil Filter - Spin On
Make: 92
S.40538 - Oil Filter - Spin On
Fuel Lift Pump
Make: 65
S.40563 - Fuel Lift Pump
Pre Cleaner - Universal
Make: 65
S.41393 - Pre Cleaner - Universal
Camshaft Bush
Make: 65
S.41399 - Camshaft Bush
Valve Collet
Make: 65
S.41413 - Valve Collet
Fuel Injector Pipe Set
Make: 65
S.41522 - Fuel Injector Pipe Set
Camshaft 4 Cyl.
Make: 65
S.41524 - Camshaft 4 Cyl.
Bypass Hose, Inner Ø of Hose Smaller End: 28mm, Inner Ø of Hose Bigger End: 28mm
Make: 65
S.41527 - Bypass Hose, Inner Ø of Hose Smaller End: 28mm, Inner Ø of Hose Bigger End: 28mm
Exhaust Valve Guide
Make: 65
S.41539 - Exhaust Valve Guide
Piston (Standard)
Make: 65
S.41540 - Piston (Standard)
Engine Oil Pump Strainer
Make: 65
S.41542 - Engine Oil Pump Strainer
Water Pump Assembly (Without Pulley)
Make: 65
S.41593 - Water Pump Assembly (Without Pulley)
Crankshaft Kit (4 Cyl.) A4.236/A4.248
Make: 65
S.41639 - Crankshaft Kit (4 Cyl.) A4.236/A4.248
Crankshaft Kit (4 Cyl.) A4.236/A4.248
Make: 65
S.41641 - Crankshaft Kit (4 Cyl.) A4.236/A4.248
Top Hose, Inner Ø of Hose Smaller End: 52mm, Inner Ø of Hose Bigger End: 52mm
Make: 65
S.41827 - Top Hose, Inner Ø of Hose Smaller End: 52mm, Inner Ø of Hose Bigger End: 52mm
Bottom Hose, Inner Ø of Hose Smaller End: 40mm, Inner Ø of Hose Bigger End: 40mm
Make: 65
S.41832 - Bottom Hose, Inner Ø of Hose Smaller End: 40mm, Inner Ø of Hose Bigger End: 40mm
Bottom Hose, Inner Ø of Hose Smaller End: 30mm, Inner Ø of Hose Bigger End: 40mm
Make: 65
S.41839 - Bottom Hose, Inner Ø of Hose Smaller End: 30mm, Inner Ø of Hose Bigger End: 40mm
Crankshaft Gear
Make: 65
S.41851 - Crankshaft Gear
Crankshaft Pulley
Make: 65
S.41855 - Crankshaft Pulley
Camshaft Follower
Make: 65
S.41918 - Camshaft Follower
Rocker Arm (RH)
Make: 65
S.41919 - Rocker Arm (RH)
Rocker Arm LH
Make: 65
S.41920 - Rocker Arm LH
Cylinder Head Stud
Make: 65
S.41922 - Cylinder Head Stud
Engine Oil Pump
Make: 65
S.41938 - Engine Oil Pump
Conrod Bearing +0.040'' (1mm) Set
Make: 65
S.42110 - Conrod Bearing +0.040'' (1mm) Set
Main Bearing +0.050'' (1.25mm) (Set)
Make: 65
S.42117 - Main Bearing +0.050'' (1.25mm) (Set)
Top Hose, Inner Ø of Hose Smaller End: 40mm, Inner Ø of Hose Bigger End: 44mm
Make: 65
S.42687 - Top Hose, Inner Ø of Hose Smaller End: 40mm, Inner Ø of Hose Bigger End: 44mm
Fan Blade
Make: 65
S.43123 - Fan Blade
Fan Blade
Make: 65
S.43124 - Fan Blade
Crankshaft Pulley Retaining Kit
Make: 65
S.43256 - Crankshaft Pulley Retaining Kit
Cylinder Head Stud Kit
Make: 65
S.43678 - Cylinder Head Stud Kit
Flywheel Assembly
Make: 65
S.43714 - Flywheel Assembly
Fuel Injection Pump Seal Kit
Make: 65
S.57135 - Fuel Injection Pump Seal Kit
Engine Oil Pump
Make: 65
S.5936 - Engine Oil Pump
Fuel Lift Pump
Make: 65
S.65283 - Fuel Lift Pump
Product Specifications

Specifications

Engine Overhaul Kit without Valve Train
Engine Manufacturer: -
Engine Model: -
Cylinder
Contains | 4 x S.41540 Piston, 4 x S.41401 Ring Set, 4 x S.41375 Liner, 4 x S.40361 Conrod Bush, 8 x S.40363 C/R Bolt & Nut, 1 x S.43568 Top Gasket Set, 1 x S.40610 Lower Gasket Set, 1 x S.40351 F/C Oil Seal, 1 x S.40356 R/C Oil Seal || Related products | 40351,40356,40361,40363,40610,41375,41401,41540,41639,41641,43568 || Barcode EAN13 | 5023495419411 || Tariff Code | 8409990090 || Liner Type | Finished || Supplied with Valve Train Kit | No || Perkins Build List | Perkins Build List: LF (U08338>) || Barcode 128 | S.41941 || Returnable Product | This item can be returned
Barcode 128
S.41941
Barcode EAN13
5023495419411
Brand
Sparex
Contains
4 x S.41540 Piston, 4 x S.41401 Ring Set, 4 x S.41375 Liner, 4 x S.40361 Conrod Bush, 8 x S.40363 C/R Bolt & Nut, 1 x S.43568 Top Gasket Set, 1 x S.40610 Lower Gasket Set, 1 x S.40351 F/C Oil Seal, 1 x S.40356 R/C Oil Seal
Liner Type
Finished
Perkins Build List
Perkins Build List: LF (U08338>)
Related products
Oil Seal 2.375 x 3.125 x 0.375S.40351https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40351_pic1.jpgSparexSeal - Front CrankshaftImperial Rotary Shaft Seal, 5.17'' x 6.25'' x 0.51''S.40356https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40356_pic1.jpgSparexSeal - Double Lip Type ,(Black Viton) Alternative to S.41326Small End Bush - ID: 34.6mmS.40361https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40361_pic1.jpgSparexEngine ModelConrod BoltS.40363https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40363_pic1.jpgSparex Bottom Gasket Set - 4 Cyl. (AD4.203, A4.212, A4.236, AT4.236, A4.248)S.40610https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40610_pic1.jpgSparexWithout Seals (Without Seals)Piston Liner (Finished) Supplied withS.41375https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41375_pic1.jpgSparexLiner - Finished, FlangedPiston RingS.41401https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41401_pic1.jpgSparexRing SetPiston (Standard)S.41540https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41540_pic1.jpgSparexPiston Length: 121.00mm
Compression Height: 70.50mm
Bore Ø: 101.6mm
Chamber Depth: 20.92mm
Chamber Ø: 61.45mm
Pin Ø: 34.93mm
No. of Rings: 3Crankshaft Kit (4 Cyl.) A4.236/A4.248S.41639https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41639_pic1.jpgSparexLip Seal
Snout: 3 Holes
Splined, Keyway
Flange: 6 Holes, 1 Dowel
Contains: S.40339 x 1 Main Bearing, S.40323 x 1 Conrod Bearing, S.40345 x 1 Thrust Washers, S.43256 x 1 Pulley KitCrankshaft Kit (4 Cyl.) A4.236/A4.248S.41641https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/41641_pic1.jpgSparexRope Seal, Heavy Weight
Contains: S.40339 x 1 Main Bearing, S.40323 x 1 Conrod Bearing, S.40345 x 1 Thrust WashersTop Gasket Set - 4 Cyl.S.43568https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/43568_pic1.jpgSparex(For engines with plain liner. (no flame ring extending above block))S.40351, S.40356, S.40361, S.40363, S.40610, S.41375, S.41401, S.41540, S.41639, S.41641, S.43568
Supplied with Valve Train Kit
No
Tariff Code
8409990090
Suitable For Make/Model

Suitable For Make/Model

Massey Ferguson
175, 178, 194, 275, 285 (FR), 285 US BUILT, 290, 290 US BUILT, 294-4, 390, 390E BRAZILIAN, 50E, 50EX, 5335, 590, 60H, 690
Perkins
A4.248 (LF)
Massey FergusonMassey Ferguson 175175Massey FergusonMassey Ferguson 178178Massey FergusonMassey Ferguson 194194Massey FergusonMassey Ferguson 275275Massey FergusonMassey Ferguson 285 (FR)285 (FR)Massey FergusonMassey Ferguson 285 US BUILT285 US BUILTMassey FergusonMassey Ferguson 290290Massey FergusonMassey Ferguson 290 US BUILT290 US BUILTMassey FergusonMassey Ferguson 294-4294-4Massey FergusonMassey Ferguson 390390Massey FergusonMassey Ferguson 390E BRAZILIAN390E BRAZILIANMassey FergusonMassey Ferguson 50E50EMassey FergusonMassey Ferguson 50EX50EXMassey FergusonMassey Ferguson 53355335Massey FergusonMassey Ferguson 590590Massey FergusonMassey Ferguson 60H60HMassey FergusonMassey Ferguson 690690PerkinsPerkins A4.248 (LF)A4.248 (LF)
OEM Part Numbers

Oem Part Numbers

Allis Chalmers
733767M1, 70251121, 70251119, 70257365, 4226213M1, 70251118, 1447691M1, 1447690M1, 71015543
Case IH / International Harvester
311752A1, 3120516R91, 218271A1, 218299A1, 3118128R91, 3235723A1, 795775R1, 87575318, 218375A1, 292994A1, 505110, 505852
Ford / New Holland
505043, 505071, 505110, 218375A1, 87575318
JCB
2101917, 02/101436, 2291072, 2192015, 2101435
Landini
747050M91, 68017, 68006, 85795, 86979, 132762144, 3637030M1, 3637334M1, 141158022, 68032, 131134123, 132762145, 3637029M1, 3638515M91, 3637362M91, 3640719M91, 12415391, 3638983M91, U5LT0052, U5LB5145, U5LB0015, 715723A1, 68011, U5LT0176, 1447690M1, 2418F436, 2418F437, 194477, 85781, U5LB0145, U5LB0018, U5LB0004, 747428M91, 92430, 94478, 92432, 1447691M1, 94482, 733767M1, U5LB0016, U5LB0005, 82885, 133221328, 3637034M1, 41158022, 92431, 92440, 94477, 3135X034, 218375A1, 2418F475, 2415391, 2415390, 32762144, 32762116, 194478, 218271A1, U5LP0009, U5LB0045, U5LB0046, 92429, 85007
Massey Ferguson
85781, 85007, 742729M91, 744756M91, 737434M91, 740571M1, 739012M91, 735229M91, 747050M91, 747428M91, 742727M91, 742730M91, 746639M91, 747193M91, 746640M91, 747191M91, 740588M91, 740586M91, 741897M91, 741898M91, 739864M91, 733767M1, 68010, 68006, 1447049M91, 736416M91, 736516M92, 737183M91, U5LT0052, 4224532M1, 4224574M91, 3135X034, 92432, 70730050, 68011, 1446853M1, 1447690M1, 1447691M1, 68032, 68017, 1447691M91, 1447690M91, 1447049M1, 1476232X1, U5LB0016, 4222485M1, U5LP0009, 2418F436, 92430, 4224292Z91, 41158022, 1076898M1, U5LB0004, U5LB0005, 4222485V1, 3637034M1, 3637030M1, 3637029M1, 2415391, 3638983M91, 3638515M91, 3637334V1, 3637362M91, 3637334M1, 376568X1, 32762145, 33221328, 32762144, 32762116, 2418F475, 3640719M91, 31134123, 2415390
Perkins
2101436, 2415361, 2415390, 2418F701, 2418F436, 2418F475, 41158022, 92429, 83456, 32762145, 82885, U5LB0004, U5LB0018, 3135X034, 31134123, 68011, 68813, 4115Y001, 2415391, 32762144, 32762116, 376568X1, U5LB0045, U5LB0016, U5LP0009, 83371, 85781, 85044, 86979, 92432, 92440, 92431, 92430, U5LB0005, U5LL0031, U5LH0013, U5LT0052, 94481, 94482, 94478, 94477, 85007, 33221328, 68811, 68012, U5LB0145, 85795, 68032, 68015
Renault
7701031630, 7701030494
Vandervell
B.5283
White Oliver
31-2752777, 159369A, 1447690M1, 30-3158411, 159213A, 1447691M1, 3637029M1, 733767M1
Yanmar
194312-32660, 19431232660
Catalogue Pages

Catalogue Pages

Catalogue
Page No.
S.700224 Massey Ferguson 2013
164 , 538
