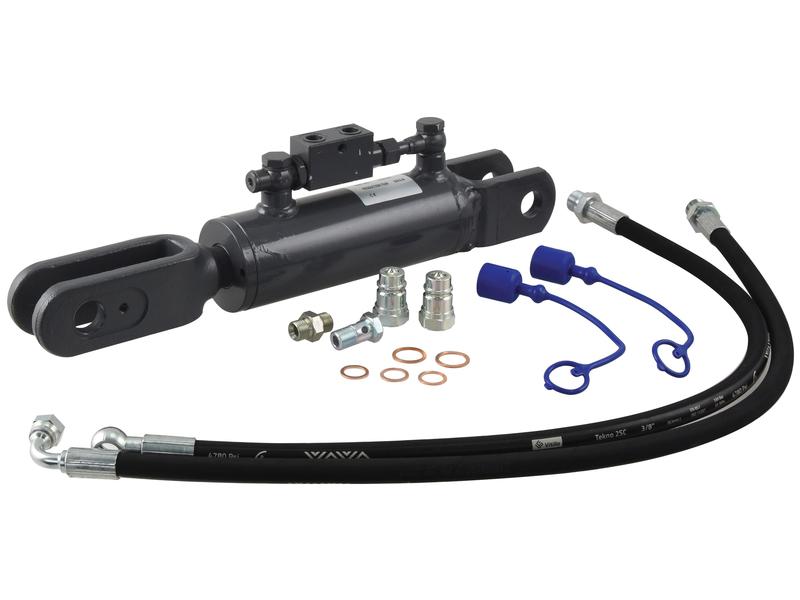

Min. Length :470mm - Max. Length: 586mm - Width Internal (mm) 45 Top & 32 Bottom - Width External (mm) 69 Top & 63 Bottom
Sparex
Barcode 128
S.173534
Barcode EAN13
5045161735342
Brand
Sparex
Check Valve Position
Top
Cylinder Bore (mm)
63
End Fittings A
Fork Hole Ø 25mm
End Fittings B
Fork Hole Ø 26mm
Maximum Length (mm)
586
Minimum Length (mm)
470
