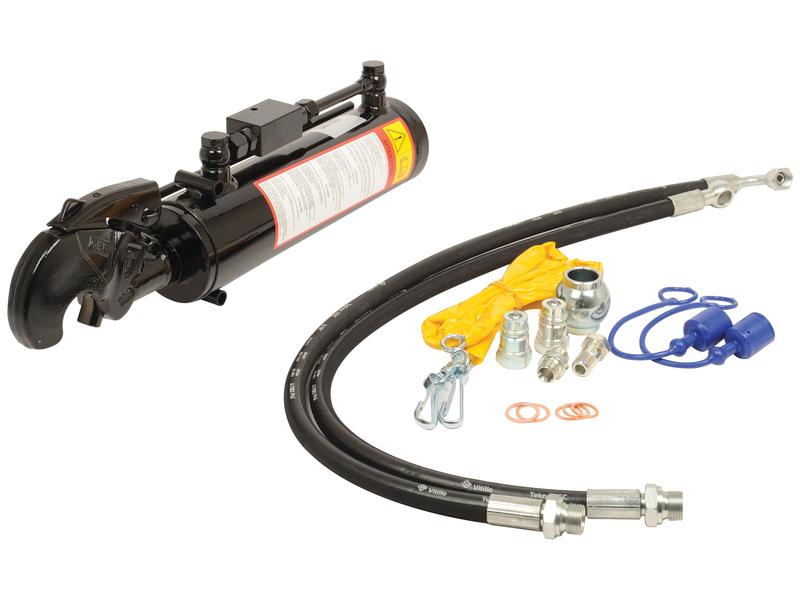

Hydraulic Top Link (Cat.-/3 (Ø-/32mm)) and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 690mm. Image 1

  • Hydraulic Top Link (Cat.-/3 (Ø-/32mm)) and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 690mm. 1
Hydraulic Top Link (Cat.-/3 (Ø-/32mm)) and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 690mm. - Image 3

Hydraulic Top Link (Cat.-/3 (Ø-/32mm)) and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 690mm.

Make: 65

S.56806

Weight: 29.56kg
Stock Check
Min. Length : 690mm, Max. Length : 911mm, Supplied with : Hose set, chain & ball, marker label without knuckle & pin, Requires Threaded Rod (S.32947), Knuckle (S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm or S.56817 Ø36mm), or fixing pin (S.10292) and locking collar (S.32977). Or threaded ball end (S.32950 Ø25.4mm or S.32951 Ø32mm) and locking collar (S.32977). View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Top Link Knuckle End - Cat. 2 (Ø25mm)
Make: 65
S.10287 - Top Link Knuckle End - Cat. 2 (Ø25mm)
Top Link Knuckle End - Cat. 3 (Ø32mm)
Make: 65
S.10288 - Top Link Knuckle End - Cat. 3 (Ø32mm)
Top Link Knuckle End - Cat. 28mm
Make: 65
S.10289 - Top Link Knuckle End - Cat. 28mm
Top Link Knuckle End - Cat. 30mm
Make: 65
S.10290 - Top Link Knuckle End - Cat. 30mm
Hydraulic Top Link Knuckle Fixing Pin 28x77/87mm
Make: 65
S.10292 - Hydraulic Top Link Knuckle Fixing Pin 28x77/87mm
Top Link Threaded Eye Thread size:M36 x 3.00 RH
Make: 65
S.32947 - Top Link Threaded Eye Thread size:M36 x 3.00 RH
Top Link Ball End - M36 x 3.00 Metric - Cat.2 (Ø25mm)
Make: 65
S.32950 - Top Link Ball End - M36 x 3.00 Metric - Cat.2 (Ø25mm)
Top Link Ball End - M36 x 3.00 Metric - Cat.3 (Ø32mm)
Make: 65
S.32951 - Top Link Ball End - M36 x 3.00 Metric - Cat.3 (Ø32mm)
Top Link Locking Collar Metric M36 x 3.00
Make: 65
S.32977 - Top Link Locking Collar Metric M36 x 3.00
Top Link Ball (Cat. 3/2)
Make: 65
S.33004 - Top Link Ball (Cat. 3/2)
Top Link Ball (Cat. 3/3)
Make: 65
S.33010 - Top Link Ball (Cat. 3/3)
Hydraulic Top Link Hose Assembly 3/8 BSP - 800mm
Make: 65
S.33144 - Hydraulic Top Link Hose Assembly 3/8 BSP - 800mm
Hydraulic Top Link Holding Bracket
Make: 65
S.33158 - Hydraulic Top Link Holding Bracket
Top Link Hook Repair Kit (Cat. 3 (Ø32mm))
Make: 93
S.33202 - Top Link Hook Repair Kit (Cat. 3 (Ø32mm))
Hydraulic Top Link Handle 290 + 70mm
Make: 65
S.39965 - Hydraulic Top Link Handle 290 + 70mm
Hydraulic Top Link Handle 310mm
Make: 65
S.39966 - Hydraulic Top Link Handle 310mm
Hydraulic Top Link Handle 290mm
Make: 65
S.39967 - Hydraulic Top Link Handle 290mm
Hydraulic Top Link Handle 375mm
Make: 65
S.39968 - Hydraulic Top Link Handle 375mm
Top Link Knuckle End - Cat. 36mm
Make: 65
S.56817 - Top Link Knuckle End - Cat. 36mm
Top Link Threaded Eye Thread size:M36 x 3.00 RH
Make: 65
S.56818 - Top Link Threaded Eye Thread size:M36 x 3.00 RH
Heavy Duty Top Link Ball (Cat. 3/2)
Make: 65
S.148196 - Heavy Duty Top Link Ball (Cat. 3/2)
Heavy Duty Top Link Ball (Cat. 3/3)
Make: 65
S.148197 - Heavy Duty Top Link Ball (Cat. 3/3)
MARCHESINI Dual Pilot Operated Check Valve Kit 3/8'' BSP (30 L/min Flow Rate)
Make: 160
S.33137 - MARCHESINI Dual Pilot Operated Check Valve Kit 3/8'' BSP (30 L/min Flow Rate)
Product Specifications

Specifications

Min. Length : 690mm, Max. Length : 911mm, Supplied with : Hose set, chain & ball, marker label without knuckle & pin, Requires Threaded Rod (S.32947), Knuckle (S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm or S.56817 Ø36mm), or fixing pin (S.10292) and locking collar (S.32977). Or threaded ball end (S.32950 Ø25.4mm or S.32951 Ø32mm) and locking collar (S.32977).
Sparex
Barcode 128
S.56806
Barcode EAN13
5023495568065
Brand
Sparex
Category Implement End
3 (Ø32mm)
Category
-/3 (Ø-/32mm)
Check Valve Position
Top
Cylinder Bore (ins)
4-1/8
Cylinder Bore (mm)
105
Implement End
Q.R CBM Hook
Lift kgs @180 bar
11520
Maximum Length (ins)
35-13/16
Maximum Length (mm)
911
Minimum Length (ins)
27-1/8
Minimum Length (mm)
690
