Intelligent Vehicle Camera System

Specifications

Blind spots and poor visibility contribute to agricultural accidents each year. Our new wired intelligent vehicle camera system, equipped with real time smart hazard detection and notification capabilities, is designed to enhance driver safety. Enabling farmers and road users to spot, assess, and react to potential hazards instantly. Ideal for when using front loaded implements, turning at road junctions, reversing round corners and so much more.
• Universal Compatibility - Suits many vehicles; including trucks, tractors, and trailers
• Customisable Settings – Adjustable camera views, detection distances, and audio notifications
• Eliminates Blind Spots - 120 ° angle, high-definition cameras with advanced detection technology and night vision
• Advanced Hazard Detection & Alerts – Differentiates between & notifies driver to humanoid, vehicle, or object hazards
• Integrated SD Card Slot – for recording purposes (SD card not included)
• The Sparex Intelligent Vehicle Camera is still only a complementary tool. Operator should always visually inspect their surroundings and not rely on the system alone.
• Connect camera to channel 3 and 4 for the Intelligent Detection & Alerts view.

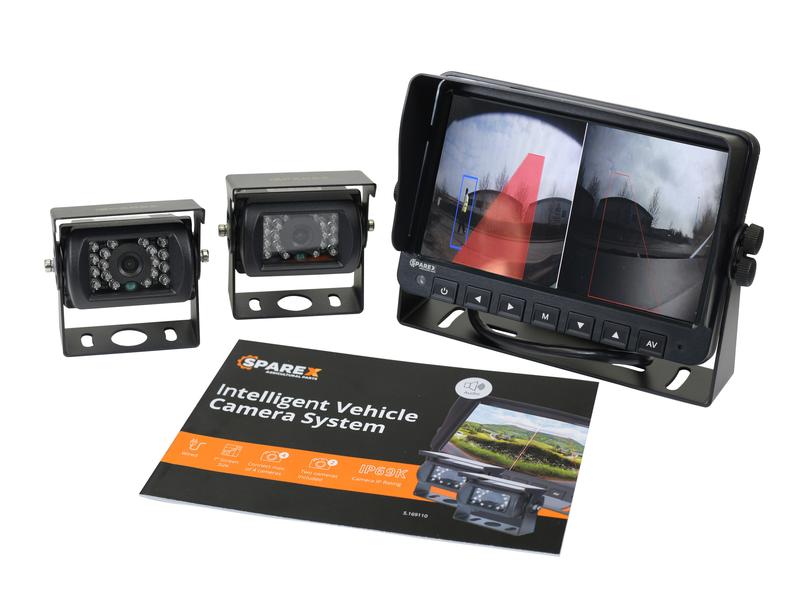

Contains: 1x 7'' HD touch button monitor 1024 (RGB) x 600 with audio + 2x 1/2.9'' CMOS 1280 x 720 Camera + 1x 1.5m 4 Pin Cable, 1 x Removable sunvisor, 2 x Adjustable support, 1 x Manual
Max. no. of cameras: 4 (Max. shown on screen: 4)
Temperature range
Night vision
Camera viewing angle: 120°
IP Rating: IP69K
Volts: 12-24V

Auto reverse switch cable

3 ways trigger wire

Barcode 128

S.169110

Barcode EAN13

5045161691105

Brand

Sparex

Brightness

450cd/㎡

Camera IP rating

IP69K

Camera Overall Depth mm

65

Camera Overall Height mm

78

Camera Overall Width mm

71

Camera viewing angle

120°

Certification

CE, EMC, RoHS, E9, UKCA, IP69K

Colour encoding

PAL/NTSC

Connectivity

Analogue (CVBS)

Contains

1x 7'' HD touch button monitor 1024 (RGB) x 600 with audio + 2x 1/2.9'' CMOS 1280 x 720 Camera + 1x 1.5m 4 Pin Cable, 1 x Removable sunvisor, 2 x Adjustable support, 1 x Manual

Contrast

500:1

Depth (mm)

26

Frame rate (FPS)

PAL: 25, NTSC: 30

Height (mm)

122

IP Rating

IP69K

Maximum number of cameras shown on screen

4

Maximum number of cameras

4

Mirror function

Yes

Monitor IP rating

IP54

Monitor size

7''

Monitor type

HD Touch Button Monitor

Night vision

Yes

Notes

Blind spots and poor visibility contribute to agricultural accidents each year. Our new wired intelligent vehicle camera system, equipped with real time smart hazard detection and notification capabilities, is designed to enhance driver safety. Enabling farmers and road users to spot, assess, and react to potential hazards instantly. Ideal for when using front loaded implements, turning at road junctions, reversing round corners and so much more. • Universal Compatibility - Suits many vehicles; including trucks, tractors, and trailers • Customisable Settings – Adjustable camera views, detection distances, and audio notifications • Eliminates Blind Spots - 120 ° angle, high-definition cameras with advanced detection technology and night vision • Advanced Hazard Detection & Alerts – Differentiates between & notifies driver to humanoid, vehicle, or object hazards • Integrated SD Card Slot – for recording purposes (SD card not included) • The Sparex Intelligent Vehicle Camera is still only a complementary tool. Operator should always visually inspect their surroundings and not rely on the system alone. • Connect camera to channel 3 and 4 for the Intelligent Detection & Alerts view.

Quad screen

Yes

Suitable For Make/Model

This product is not associated with any particular make or model

Oem Part Numbers

This product is not associated with any particular OEM part number

Catalogue Pages

This product does not appear in any Sparex printed catalogues
