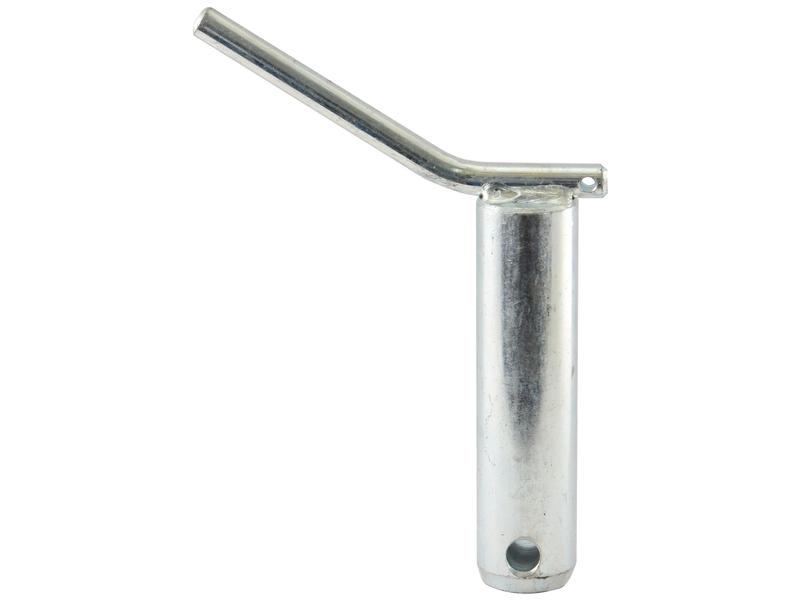

Lower link pin - Double shear 36x127mm Cat.3 (Ø36mm)
S.3235 Weight: 1.31kg
Pin Ø: 36mm, Working length: 127mm, Overall length: 142mm, Handle length: 150mm, Hole Ø 12mm Material: EN8 Steel View Product Specifications
View Suitable For
View OEM Part Numbers
Product Specifications
Specifications
Pin Ø: 36mm, Working length: 127mm, Overall length: 142mm, Handle length: 150mm, Hole Ø 12mm Material: EN8 Steel
Sparex
Alternative to
Tag Lower Link Double Shear Pin (Cat. 3) S.903235 https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/903235_pic1.jpg Sparex TAG - S.3235 PIN X 1 S.903235
Barcode EAN13
5023495032351
Diagram specifications
(A) Pin Ø:36mm (1-7/16'')
(B) Working length :127mm (5'')
(C) Overall length:142mm (5-19/32)
(E) Hole Ø :12mm (1/2'')
(H) Handle length 150mm (5-29/32'')
Handle length (ins)
5-29/32
Overall length (ins)
5-19/32
Suitable For Make/Model
Suitable For Make/Model
This product is not associated with any particular make or model
OEM Part Numbers
Oem Part Numbers
This product is not associated with any particular OEM part number
Catalogue Pages
