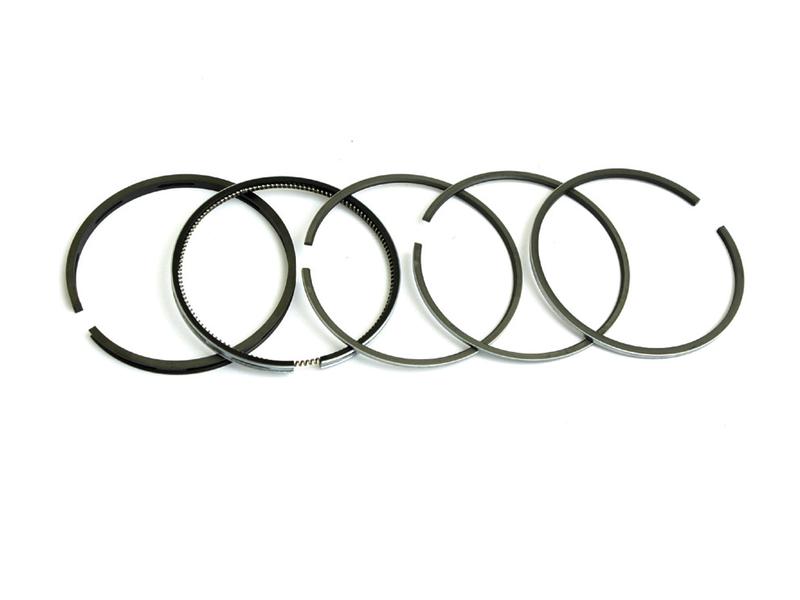

Piston Ring Image 1

  • Piston Ring 1
  • Piston Ring 2
Piston Ring - Image 3

Piston Ring

Make: 65

S.40427

Weight: 0.16kg
Stock Check
Ring Set View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Piston (Standard)
Make: 65
S.40413 - Piston (Standard)
Piston Liner (Finished) Supplied with
Make: 65
S.40434 - Piston Liner (Finished) Supplied with
Piston Liner (Semi Finished) Supplied with
Make: 65
S.40440 - Piston Liner (Semi Finished) Supplied with
Top Gasket Set - 6 Cyl. (A6.354, A6.354.4, AT6.354.1, T6.354.1)
Make: 65
S.40597 - Top Gasket Set - 6 Cyl. (A6.354, A6.354.4, AT6.354.1, T6.354.1)
Top Gasket Set - 6 Cyl. (A6.354, A6.354.1, AT6.354.1, T6.354.1)
Make: 65
S.40599 - Top Gasket Set - 6 Cyl. (A6.354, A6.354.1, AT6.354.1, T6.354.1)
Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )
Make: 65
S.40616 - Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )
Product Specifications

Specifications

Ring Set
Sparex
Barcode 128
S.40427
Barcode EAN13
5023495404271
Brand
Sparex
Number of Rings
5
Perkins Build List
Perkins Build List: TC20820, TG21303, 22453, TJ, TK
Related products
Piston (Standard)S.40413https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40413_pic1.jpgSparexPiston Length: 120.35mm
Compression Height: 69.98mm
Bore Ø: 98.48mm
Chamber Depth: 25.76mm
Chamber Ø: 54.14mm
Pin Ø: 34.95mm
No. of Rings: 5Piston Liner (Semi Finished) Supplied withS.40440https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40440_pic1.jpgSparexLiner - Un-Finished, Flanged with Flame RingPiston Liner (Finished) Supplied withS.40434https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40434_pic1.jpgSparexLiner - Finished, Flanged with Flame RingTop Gasket Set - 6 Cyl. (A6.354, A6.354.4, AT6.354.1, T6.354.1)S.40597https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40597_pic1.jpgSparex(Asbestos Free)Top Gasket Set - 6 Cyl. (A6.354, A6.354.1, AT6.354.1, T6.354.1)S.40599https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40599_pic1.jpgSparex Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )S.40616https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40616_pic1.jpgSparexWithout Seals (Without Seals)S.40413, S.40440, S.40434, S.40597, S.40599, S.40616
Ring Type
Top Ring: CP1 - Chrome Plated Parallel Faced (3.17mm) 2nd Ring: CP3 - Chrome Plated Parellel Faced Internally Bevelled Top (2.38mm) 3rd Ring: CP3 - Chrome Plated Parellel Faced Internally Bevelled Top (2.38mm) 4th Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (6.35mm) 5th Ring: SS - Standard Slotted (6.35mm)
Tariff Code
8409990090
Suitable For Make/Model

Suitable For Make/Model

Landini
LARGE 10000
Massey Ferguson
1014, 1100, 1105, 1200, 500, 510, 520, 525
Perkins
A6.354 (TC), A6.354.1 (TG)
White Oliver
2-85
LandiniLandini LARGE 10000LARGE 10000Massey FergusonMassey Ferguson 10141014Massey FergusonMassey Ferguson 11001100Massey FergusonMassey Ferguson 11051105Massey FergusonMassey Ferguson 12001200Massey FergusonMassey Ferguson 500500Massey FergusonMassey Ferguson 510510Massey FergusonMassey Ferguson 520520Massey FergusonMassey Ferguson 525525PerkinsPerkins A6.354 (TC)A6.354 (TC)PerkinsPerkins A6.354.1 (TG)A6.354.1 (TG)White OliverWhite Oliver 2-852-85
OEM Part Numbers

Oem Part Numbers

Massey Ferguson
41158032, 745752M91, 86763
Perkins
41158032, 86763
White Oliver
31-2751057
