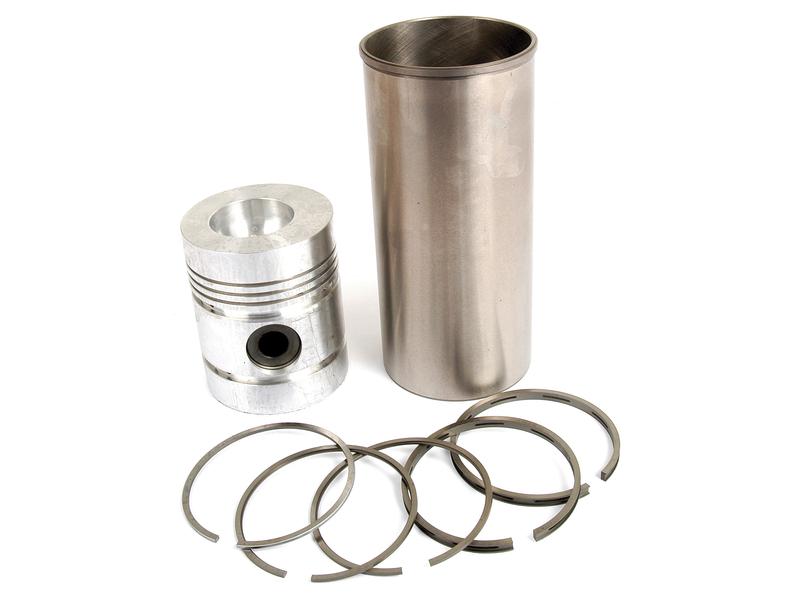

Piston Ring and Liner Kit Image 1

  • Piston Ring and Liner Kit 1
  • Piston Ring and Liner Kit 2
Piston Ring and Liner Kit - Image 3

Piston Ring and Liner Kit

Make: 65

S.40455

Weight: 3.13kg
Stock Check
Piston, Ring & Liner Kit (Finished) (Flanged Liner) View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Piston (Standard)
Make: 65
S.40412 - Piston (Standard)
Piston Ring
Make: 65
S.40422 - Piston Ring
Piston Ring
Make: 65
S.40423 - Piston Ring
Piston Liner (Finished) Supplied with
Make: 65
S.40434 - Piston Liner (Finished) Supplied with
Top Gasket Set - 6 Cyl. (A6.354, A6.354.4, AT6.354.1, T6.354.1)
Make: 65
S.40597 - Top Gasket Set - 6 Cyl. (A6.354, A6.354.4, AT6.354.1, T6.354.1)
Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )
Make: 65
S.40616 - Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )
Product Specifications

Specifications

Piston, Ring & Liner Kit (Finished) (Flanged Liner)
Sparex
Barcode 128
S.40455
Barcode EAN13
5023495404554
Bore Ø (mm)
98.46
Brand
Sparex
Finish
Finished
Perkins Build List
Perkins Build List: TC (Excluding TC20820), TG21428, 22572, 22577, 22585, 22819, TW31015, 31017, 31051, 31054, 31087, 33169, 33196, 33383, 50003, 50055, 50059, 70005, 70007, 70038, 70087, 70158, 80006, 80045, 80062, 80065, 80189, 80242 (Flange Type Liner)
Related products
Piston (Standard)S.40412https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40412_pic1.jpgSparexPiston Length: 120.75mm
Compression Height: 69.85mm
Bore Ø: 98.46mm
Chamber Depth: 25.64mm
Chamber Ø: 53.98mm
Pin Ø: 34.93mm
No. of Rings: 5Piston RingS.40422https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40422_pic1.jpgSparexRing SetPiston RingS.40423https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40423_pic1.jpgSparexRing SetPiston Liner (Finished) Supplied withS.40434https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40434_pic1.jpgSparexLiner - Finished, Flanged with Flame RingTop Gasket Set - 6 Cyl. (A6.354, A6.354.4, AT6.354.1, T6.354.1)S.40597https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40597_pic1.jpgSparex(Asbestos Free)Bottom Gasket Set - 6 Cyl. (A6.354, A6.354.1, A6.354.4, AT6.354, AT6.354.1, AT6.354.4, T6.354, T6.354.1 )S.40616https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40616_pic1.jpgSparexWithout Seals (Without Seals)S.40412, S.40422, S.40423, S.40434, S.40597, S.40616
Ring Type
Top Ring: CP1 - Chrome Plated Parallel Faced (2.38mm) 2nd Ring: P2 - Parallel Faced Internally Stepped Top (2.38mm) 3rd Ring: P2 - Parallel Faced Internally Stepped Top (2.38mm) 4th Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (6.35mm) 5th Ring: SS - Standard Slotted (6.35mm)
Tariff Code
8409990090
Suitable For Make/Model

Suitable For Make/Model

Landini
9500, LARGE 10000
Massey Ferguson
1014, 1100, 1104, 1130, 24, 2620, 2625, 2640, 27, 500, 510, 520, 525, 530, 530S
Perkins
A6.354 (TC), A6.354.4 (TW)
LandiniLandini 95009500LandiniLandini LARGE 10000LARGE 10000Massey FergusonMassey Ferguson 10141014Massey FergusonMassey Ferguson 11001100Massey FergusonMassey Ferguson 11041104Massey FergusonMassey Ferguson 11301130Massey FergusonMassey Ferguson 2424Massey FergusonMassey Ferguson 26202620Massey FergusonMassey Ferguson 26252625Massey FergusonMassey Ferguson 26402640Massey FergusonMassey Ferguson 2727Massey FergusonMassey Ferguson 500500Massey FergusonMassey Ferguson 510510Massey FergusonMassey Ferguson 520520Massey FergusonMassey Ferguson 525525Massey FergusonMassey Ferguson 530530Massey FergusonMassey Ferguson 530S530SPerkinsPerkins A6.354 (TC)A6.354 (TC)PerkinsPerkins A6.354.4 (TW)A6.354.4 (TW)
OEM Part Numbers

Oem Part Numbers

Massey Ferguson
U5MK0127, 3638885M91, 3640484M91
Perkins
U5MK0127
