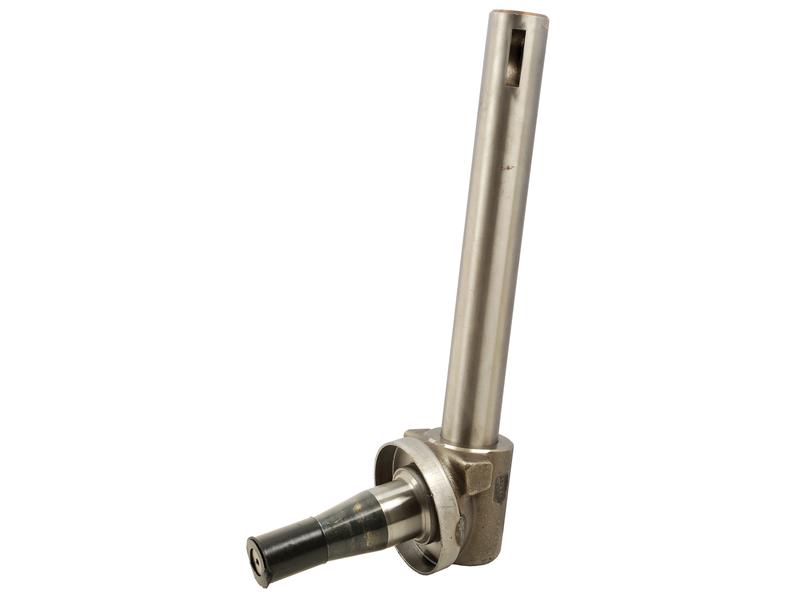

Spindle LH Image 1

  • Spindle LH 1
  • Spindle LH 2
Spindle LH - Image 3

Spindle LH

Make: 85

S.60109

Weight: 8.31kg
Stock Check
A: 322mm (12-11/16'')
A Ø: 44.5mm (1-3/4'')
B Ø: -mm (-'')
D: Inner Bearing: 45.62mm (1-25/32'')
E: Outer Bearing: 31.73mm (1-1/4'')
F: Wheel Hub Thread: 3/4 UNF View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Sparex Taper Roller Bearing (LM67048/LM67010)
Make: 65
S.2975 - Sparex Taper Roller Bearing (LM67048/LM67010)
Sparex Taper Roller Bearing (25590/25520)
S.2976 - Sparex Taper Roller Bearing (25590/25520)
Imperial Rotary Shaft Seal, 2-3/8'' x 3-3/8'' x 1/2'' Single Lip
Make: 65
S.2977 - Imperial Rotary Shaft Seal, 2-3/8'' x 3-3/8'' x 1/2'' Single Lip
Half Castle Nut, Size: 1-1/4'' UNF (DIN or Standard No. DIN 935) Tensile strength: 8.8
Make: 65
S.40214 - Half Castle Nut, Size: 1-1/4'' UNF (DIN or Standard No. DIN 935) Tensile strength: 8.8
Wheel Hub
S.40244 - Wheel Hub
Hub Cap
Make: 65
S.40247 - Hub Cap
Wheel Stud 1/2'' x 1-1/2'' (UNF) Grip Ø: 5/8''
Make: 65
S.4232 - Wheel Stud 1/2'' x 1-1/2'' (UNF) Grip Ø: 5/8''
Wheel Hub
S.42783 - Wheel Hub
Spindle RH
Make: 85
S.60110 - Spindle RH
Dust Cover
Make: 65
S.16332 - Dust Cover
Product Specifications

Specifications

A: 322mm (12-11/16'')
A Ø: 44.5mm (1-3/4'')
B Ø: -mm (-'')
D: Inner Bearing: 45.62mm (1-25/32'')
E: Outer Bearing: 31.73mm (1-1/4'')
F: Wheel Hub Thread: 3/4 UNF
N/A
A (ins)
12-11/16
A (mm)
322
A Ø (ins)
1-3/4
A Ø (mm)
44.5
Barcode 128
S.60109
Barcode EAN13
5023495601090
Brand
Spenco
Diagram specifications
A: 322mm (12-11/16'') A Ø: 44.5mm (1-3/4'') B Ø: -mm (-'') D: Inner Bearing: 45.62mm (1-25/32'') E: Outer Bearing: 31.73mm (1-1/4'') F: Wheel Hub Thread: 3/4 UNF
Duty
Heavy
D Ø (ins)
1-25/32
D Ø (mm)
45.62
E Ø (ins)
1-1/4
E Ø (mm)
31.73
Fitting
Keyway
Fitting
LH
Inner Bearing (ins)
1-25/32
Inner Bearing (mm)
45.62
Outer Bearing (ins)
1-1/4
Outer Bearing (mm)
31.73
Related products
Dust CoverS.16332https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/16332_pic1.jpgSparex Sparex Taper Roller Bearing (LM67048/LM67010)S.2975https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/2975_pic1.jpgSparexID: 31.75mm
OD: 59.131mm
Width: 15.875mmSparex Taper Roller Bearing (25590/25520)S.2976https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/2976_pic1.jpgN/AID: 45.618mm
OD: 82.931mm
Width: 23.812mmImperial Rotary Shaft Seal, 2-3/8'' x 3-3/8'' x 1/2'' Single LipS.2977https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/2977_pic1.jpgSparex Half Castle Nut, Size: 1-1/4'' UNF (DIN or Standard No. DIN 935) Tensile strength: 8.8S.40214https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40214_pic1.jpgN/A Wheel HubS.40244https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40244_pic1.jpgN/AWheel Hub. Uses S.4232 wheel studs.Hub CapS.40247https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/40247_pic1.jpgSparex Wheel Stud 1/2'' x 1-1/2'' (UNF) Grip Ø: 5/8''S.4232https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/4232_pic1.jpgN/A Wheel HubS.42783https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/42783_pic1.jpgN/AWith Studs & CapSpindle RHS.60110https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/60110_pic1.jpgN/AA: 322mm (12-11/16'')
A Ø: 44.5mm (1-3/4'')
B Ø: -mm (-'')
D: Inner Bearing: 45.62mm (1-25/32'')
E: Outer Bearing: 31.73mm (1-1/4'')
F: Wheel Hub Thread: 3/4 UNFS.16332, S.2975, S.2976, S.2977, S.40214, S.40244, S.40247, S.4232, S.42783, S.60110
Tariff Code
8708949900
Wheel Hub Thread
3/4 UNF
Suitable For Make/Model

Suitable For Make/Model

Massey Ferguson
AGRICULTURAL TRACTOR: - 200 SERIES, 275, AGRICULTURAL TRACTOR: - 300 ITALIAN SERIES, 383, 393, AGRICULTURAL TRACTOR: - 300 SERIES, 365, 375, 390, 390T, 396, 398, 399
Massey FergusonMassey Ferguson AGRICULTURAL TRACTOR: - 200 SERIESAGRICULTURAL TRACTOR: - 200 SERIESMassey FergusonMassey Ferguson 275275Massey FergusonMassey Ferguson AGRICULTURAL TRACTOR: - 300 ITALIAN SERIESAGRICULTURAL TRACTOR: - 300 ITALIAN SERIESMassey FergusonMassey Ferguson 383383Massey FergusonMassey Ferguson 393393Massey FergusonMassey Ferguson AGRICULTURAL TRACTOR: - 300 SERIESAGRICULTURAL TRACTOR: - 300 SERIESMassey FergusonMassey Ferguson 365365Massey FergusonMassey Ferguson 375375Massey FergusonMassey Ferguson 390390Massey FergusonMassey Ferguson 390T390TMassey FergusonMassey Ferguson 396396Massey FergusonMassey Ferguson 398398Massey FergusonMassey Ferguson 399399
OEM Part Numbers

Oem Part Numbers

Massey Ferguson
1696626M92, 3697 028M91, 3697028M91
Landini
3697028M91, 1696626M92
not specified
3697028M91, 3697 028M91
