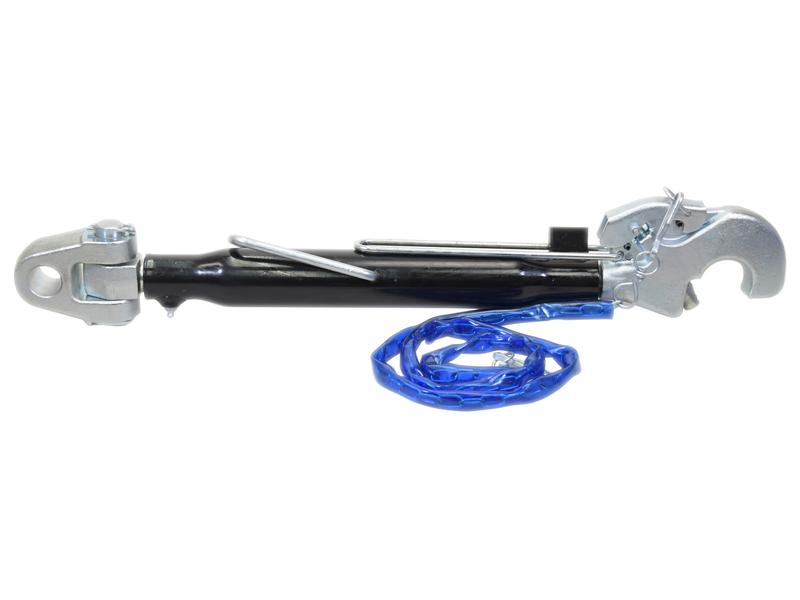

Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M36 x 3, Min. Length: 680mm. Image 1

  • Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M36 x 3, Min. Length: 680mm. 1
  • Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M36 x 3, Min. Length: 680mm. 2
Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M36 x 3, Min. Length: 680mm. - Image 3

Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M36 x 3, Min. Length: 680mm.

Make: 65

S.170799

Weight: 13.50kg
Stock Check
Tube Length: 460mm,
Min. Length: 680mm,
Max. Length: 945mm,
Thread size: M36 x 3 View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
Top Link Centre Tube - M36 x 3.00 Metric - 460mm
Make: 65
S.29323 - Top Link Centre Tube - M36 x 3.00 Metric - 460mm
Top Link Ball (Cat. 3/2)
Make: 65
S.33004 - Top Link Ball (Cat. 3/2)
Top Link Ball (Cat. 3/3)
Make: 65
S.33010 - Top Link Ball (Cat. 3/3)
Top Link Hook Release Cord, Length: 1.5M.
Make: 65
S.33017 - Top Link Hook Release Cord, Length: 1.5M.
Heavy Duty Top Link Ball (Cat. 3/2)
Make: 65
S.148196 - Heavy Duty Top Link Ball (Cat. 3/2)
Heavy Duty Top Link Ball (Cat. 3/3)
Make: 65
S.148197 - Heavy Duty Top Link Ball (Cat. 3/3)
Top Link Forged Hook - Cat. 3 (Ø32mm), Thread size: M36 x 3.00 - RH
Make: 65
S.173386 - Top Link Forged Hook - Cat. 3 (Ø32mm), Thread size: M36 x 3.00 - RH
Recommended Products
Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R CBM Hook, M36 x 3.00, Min. Length: 670mm.
Make: 93
S.140512 - Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R CBM Hook, M36 x 3.00, Min. Length: 670mm.
Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M40 x 3.00, Min. Length: 670mm.
Make: 65
S.170819 - Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M40 x 3.00, Min. Length: 670mm.
Product Specifications

Specifications

Tube Length: 460mm,
Min. Length: 680mm,
Max. Length: 945mm,
Thread size: M36 x 3
Sparex
Alternative to
Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R CBM Hook, M36 x 3.00, Min. Length: 670mm.S.140512https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/140512_pic1.jpgCBMTube Length: 460mm,
Min. Length: 670mm,
Max. Length: 965mm,
Thread size: M36 x 3.00Top Link Heavy Duty (Cat.3/3 (Ø32/32mm)) Knuckle and Q.R. Hook, M40 x 3.00, Min. Length: 670mm.S.170819https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/170819_pic1.jpgSparexTube Length: 450mm,
Min. Length: 670mm,
Max. Length: 940mm,
Thread size: M40 x 3.00S.140512, S.170819
Barcode 128
S.170799
Barcode EAN13
5045161707998
Brand
Sparex
Category Implement End
3 (Ø32mm)
Category Tractor End
3 (Ø32mm)
Category
3/3 (Ø32/32mm)
Centre Tube Size (mm)
60 x 6
Implement End
Q.R. Hook
Maximum Length (ins)
37-13/64
Maximum Length (mm)
945
Minimum Length (ins)
26-49/64
Minimum Length (mm)
680
Related products
Top Link Centre Tube - M36 x 3.00 Metric - 460mmS.29323https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/29323_pic1.jpgSparexLength: 460mm
Thread size: M36 x 3.00 Metric
Colour: BlackTop Link Ball (Cat. 3/2)S.33004https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/33004_pic1.jpgSparexID: 1'',
OD: 2-3/8'',
Width: 2-1/16''
Material: 20Mncr5 SteelTop Link Ball (Cat. 3/3)S.33010https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/33010_pic1.jpgSparexID: 1-1/4'',
OD: 2-3/8'',
Width: 2''
Material: 20Mncr5 SteelTop Link Hook Release Cord, Length: 1.5M.S.33017https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/33017_pic1.jpgSparex Heavy Duty Top Link Ball (Cat. 3/2)S.148196https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/148196_pic1.jpgSparexID:25.4mm,
OD :60mm,
Width: 52mm
Material: 20Mncr5 Steel
EPD Plated Cathodic Electrode Deposition, giving 7 times longer corrosion and external effect protection, when compared to the standard rangeHeavy Duty Top Link Ball (Cat. 3/3)S.148197https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/148197_pic1.jpgSparexID:32mm,
OD :60mm,
Width: 50mm
Material: 20Mncr5 Steel
EPD Plated Cathodic Electrode Deposition, giving 7 times longer corrosion and external effect protection, when compared to the standard rangeTop Link Forged Hook - Cat. 3 (Ø32mm), Thread size: M36 x 3.00 - RHS.173386https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/173386_pic1.jpgSparexHook Ø:60mm,
Thread length: 190mm,
Overall length: 376mmS.29323, S.33004, S.33010, S.33017, S.148196, S.148197, S.173386
Replaces
S.29790
Suitable for Tractors up to HP/Kw
180hp (135kW)
Tariff Code
7303009090
Thread size
M36 x 3
Thread type
Metric
Tractor End
Knuckle
Tube Length (ins)
18-7/64
Tube Length (mm)
460
Suitable For Make/Model

Suitable For Make/Model

Fendt
712 VARIO (712), 714 VARIO, 716 VARIO, 718 VARIO, 720 VARIO SCR (735), 722 VARIO SCR (736)
Ford / New Holland
T7.220, T7.225, T7.230, T7.235, T7.245, T7.250, T7.260, T7.270, T7.290, T7.315
Steyr
CVT 6145, CVT 6160, CVT 6170, CVT 6185, CVT 6205, CVT 6215, CVT 6230
FendtFendt 712 VARIO (712)712 VARIO (712)FendtFendt 714 VARIO714 VARIOFendtFendt 716 VARIO716 VARIOFendtFendt 718 VARIO718 VARIOFendtFendt 720 VARIO SCR (735)720 VARIO SCR (735)FendtFendt 722 VARIO SCR (736)722 VARIO SCR (736)Ford / New HollandFord / New Holland T7.220T7.220Ford / New HollandFord / New Holland T7.225T7.225Ford / New HollandFord / New Holland T7.230T7.230Ford / New HollandFord / New Holland T7.235T7.235Ford / New HollandFord / New Holland T7.245T7.245Ford / New HollandFord / New Holland T7.250T7.250Ford / New HollandFord / New Holland T7.260T7.260Ford / New HollandFord / New Holland T7.270T7.270Ford / New HollandFord / New Holland T7.290T7.290Ford / New HollandFord / New Holland T7.315T7.315SteyrSteyr CVT 6145CVT 6145SteyrSteyr CVT 6160CVT 6160SteyrSteyr CVT 6170CVT 6170SteyrSteyr CVT 6185CVT 6185SteyrSteyr CVT 6205CVT 6205SteyrSteyr CVT 6215CVT 6215SteyrSteyr CVT 6230CVT 6230
OEM Part Numbers

Oem Part Numbers

This product is not associated with any particular OEM part number
