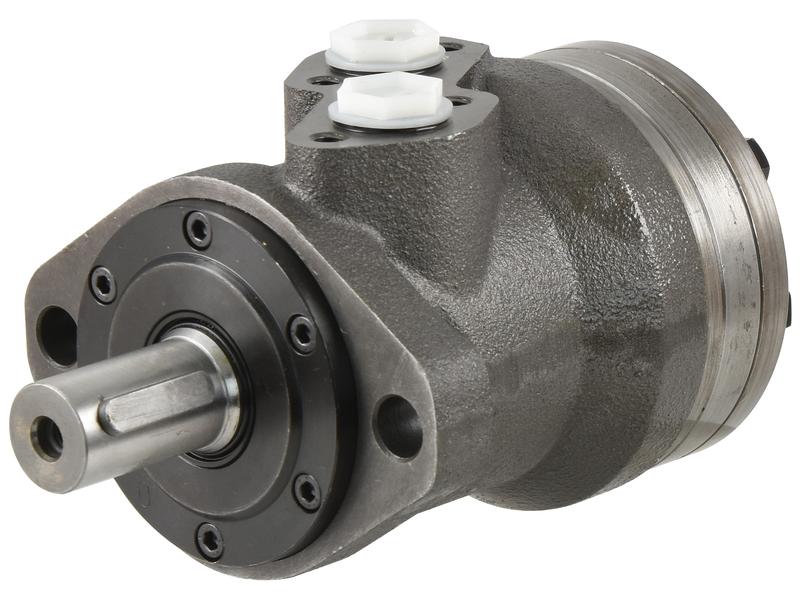

Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft Image 1

  • Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft 1
  • Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft 2
  • Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft 3
  • Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft 4
  • Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft 5
  • Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft
Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft - Image 3

Trale Hydraulic Orbital Motor OMR200 200cc rev with 25mm Cylindrical Shaft

Make: 156

S.137216

Weight: 8.67kg
Stock Check
Motor Type: OMR,
Displacement cm³: 200,
Max. Flow (LPM): 60 View Product Specifications
up
down
View Suitable For View OEM Part Numbers
Related Items
MARCHESINI OMP, OMR Motor Mounted Relief Valve 1/2'' BSP (60 L/min Flow Rate)
Make: 160
S.139555 - MARCHESINI OMP, OMR Motor Mounted Relief Valve 1/2'' BSP (60 L/min Flow Rate)
Trale Orbital Motor Seal Kit OMR
Make: 156
S.153128 - Trale Orbital Motor Seal Kit OMR
Product Specifications

Specifications

Motor Type: OMR,
Displacement cm³: 200,
Max. Flow (LPM): 60
Trale
Alternative to
Orbital Hydraulic MotorS.137155https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/137155_pic1.jpgDanfossMotor Type: OMR
Displacement: 199.8
Flow Rate: 60L/minS.137155
Barcode 128
S.137216
Barcode EAN13
5045161372165
Brand
Trale
Displacement cm³
200
Drain Port Thread
1/4'' BSP
Flange Type
SAE A2 Oval Flange - 2 Hole
L (mm)
165
L1 (mm)
35
Main Port Thread Size
1/2''
Max. RPM
300
Maximum Continuous KW Power
8
Maximum Continuous Torque Nm
369
Maximum Continuous Working Pressure Bar
140
Maximum Flow Rate LPM
60
Maximum Peak Torque Nm
509
Maximum Peak Working Pressure
200
Model
OMR200
Motor Type
OMR
Related products
Trale Orbital Motor Seal Kit OMRS.153128https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/153128_pic1.jpgTraleNew DesignMARCHESINI OMP, OMR Motor Mounted Relief Valve 1/2'' BSP (60 L/min Flow Rate)S.139555https://22df4504011deb964a17-39bee0485bf754a0e77a8d4deb668d89.ssl.cf4.rackcdn.com/imagelibrary_sml/139555_pic1.jpgMARCHESINIUSE AND OPERATION
Made up by two cross port relief valves, these valves ore used to limit the pressure in the both ports of a hydraulic motor to a certain setting.
Direct flange mounting for orbital motors type OMP-OMR provides maximum safety, very low pressure drop and a robust installation.
MATERIALS AND FEATURES
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: Guided poppet - negligible leakage.Oil temperature: 50° C - Oil viscosity: 30 cSt
CONNECTIONS
Flange M1 and M2 directly to the motor and connect ports V1 and V2 to the supply.S.153128, S.139555
Seal/Repair Kit
S.153128
Shaft Type
Cylindrical
Shaft Ø (mm)
25
Tariff Code
8412298190
Thread type
BSP
Suitable For Make/Model

Suitable For Make/Model

This product is not associated with any particular make or model
OEM Part Numbers

Oem Part Numbers

Danfoss
OMR200
